Technical Details

Maximum Speed

40 km/h

Tipping System

Back Side

Boş Ağırlık

3500 kg

Tipping Angle (Rear / Sides)

50°

Brake Type

Hydraulic / Pneumatic

Permitted Maximum Weight / Technical Weight

13 500 kg

Permitted Load Capacity / Technical Load Capacity

10 000 kg

Cover Height

1250 – 1750 mm

Internal Body Width

2100-2150 (conical) mm

Internal Body Length

4500 mm

Body Floor / Cover Thickness (mm)

4 mm

Tyres

400/60-15,5

Suspension System

Parabolic Spring

Wheel Track

1800 mm

Telescopic Cylinder (Piston Stage / Required Oil Volume / Operating Pressure)

4-Stage / 15,5 L / 160 Bar

Length / Width / Height

6350/2450/2750 mm

Load Volume

11,7 m³ / 16,4 m³ *

Loading Space

Description

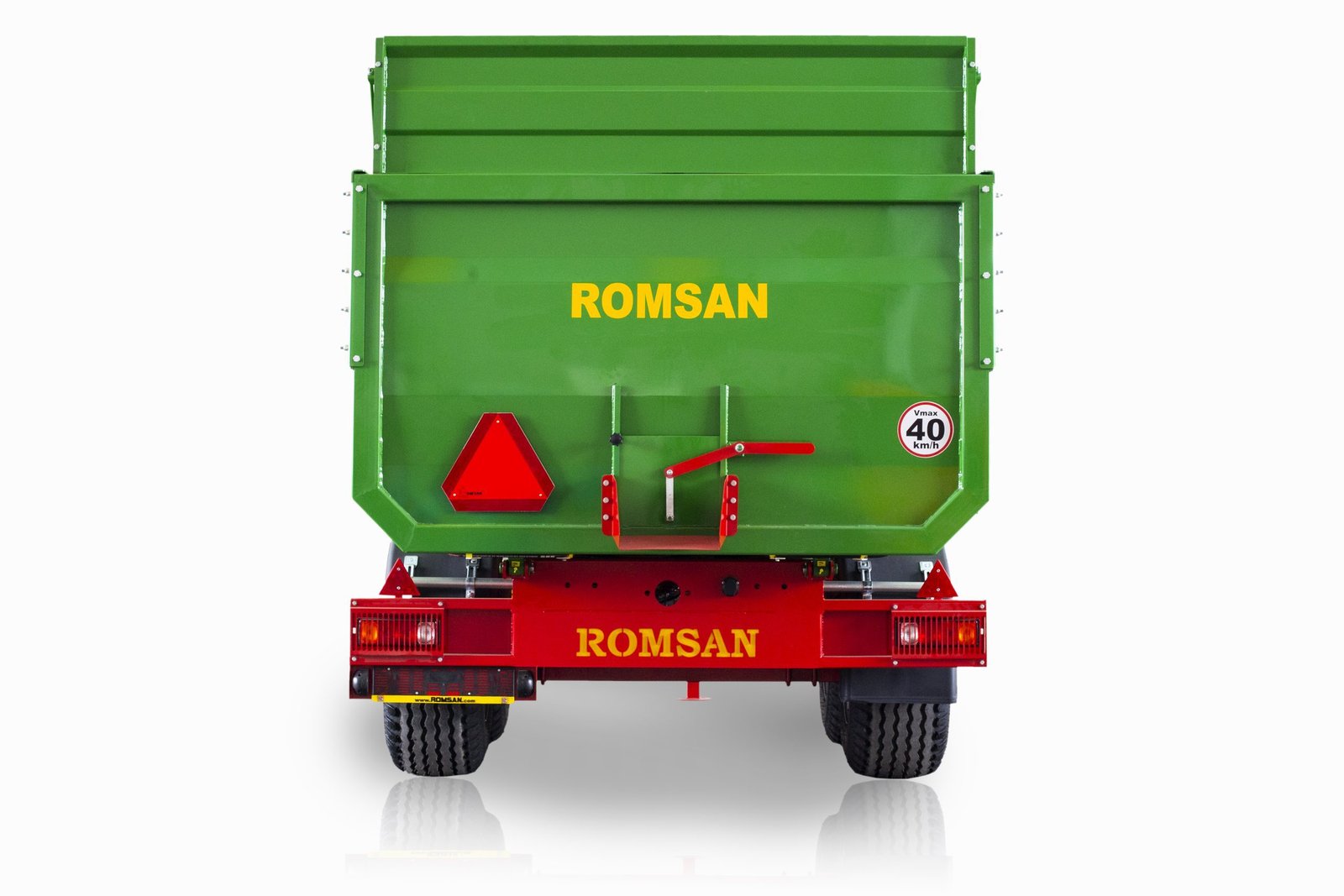

R100TAHKP4, designed specifically for professionals looking for tandem axle dump trucks. With its high performance, durable structure, and practical use, it is a powerful business solution that can be safely preferred in construction, agriculture, and transportation industries.

This model fully meets the needs of freight transportation and commercial use. Thanks to the durable dump bed, you can safely, orderly, and efficiently transport various types of loads. The tandem axle system distributes the load evenly, providing high stability to the vehicle and superior traction and control even in rough terrain conditions.

The parabolic leaf spring suspension and specially designed tires offer a comfortable, balanced, and safe driving experience for both urban and off-road use.

R100TAHKP4 is the ideal tandem axle dump truck option for businesses looking for long service life, high performance, and maximum reliability in professional transportation.
